1500Bar High Pressure 3D Water H3 Orbiter Blasting Tank Vessels cleaning machine tools
- Product Details of1500Bar High Pressure 3D Water H3 Orbiter Blasting Tank Vessels cleaning machine tools
The 1500Bar High Pressure 3D Water H3 Orbiter Blasting Tank Vessels cleaning machine tools has many unrivaled advantage characteristic,following are some of the advantages:
A:Wide range of accessories are available including cage centralizers
and extensions. Only 1” or 2” extensions can be used when the
H–3 Orbiter is installed in the centralizer.
B: For pipe cleaning, the 1500Bar High Pressure 3D Water H3 Orbiter Blasting Tank Vessels cleaning machine tools can be placed in a centralizer with an optional kick plate. When installed with the centralizer, the kick plate allows for self generated forward movement with each 180° rotation of the manifold.

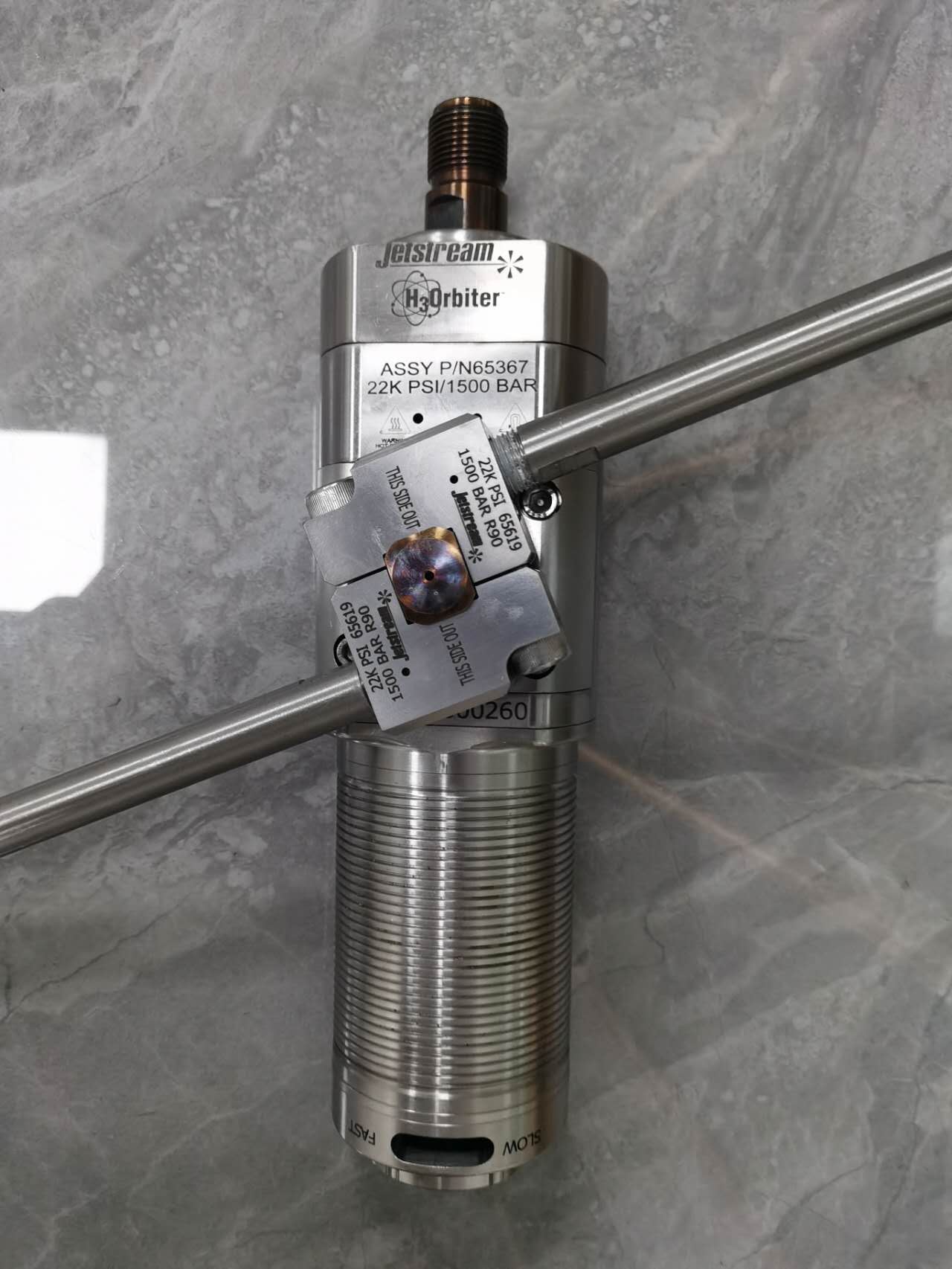

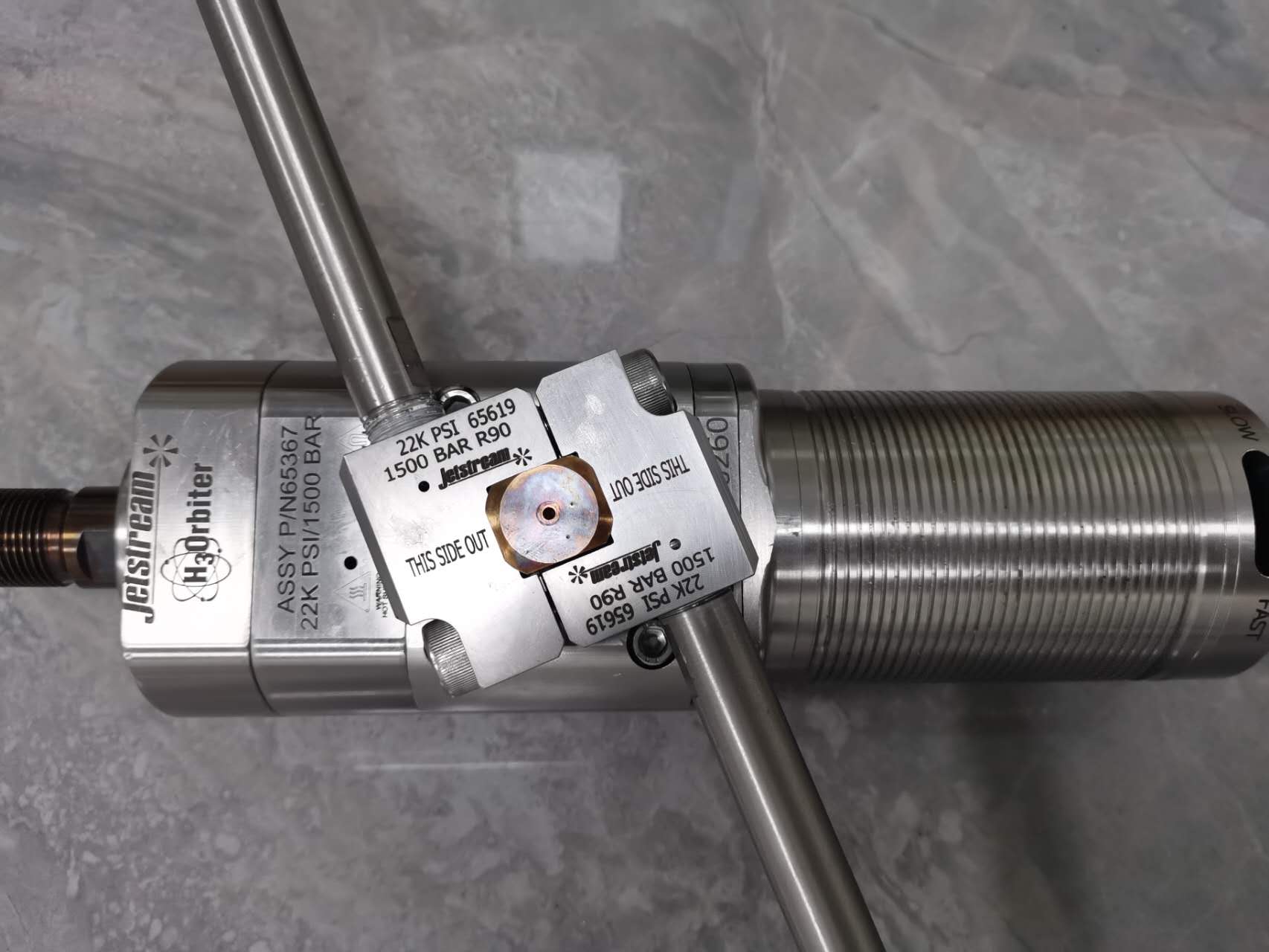

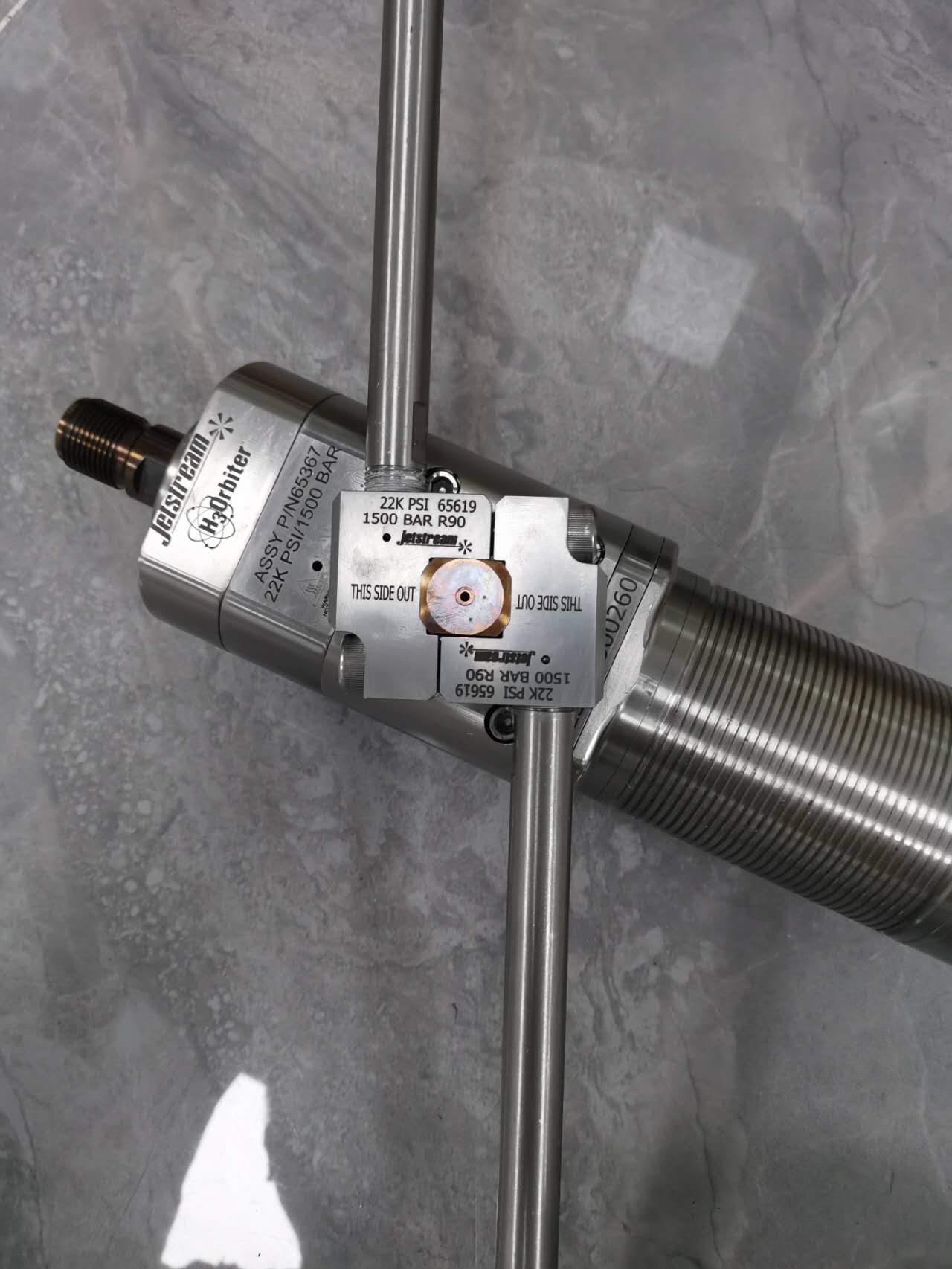

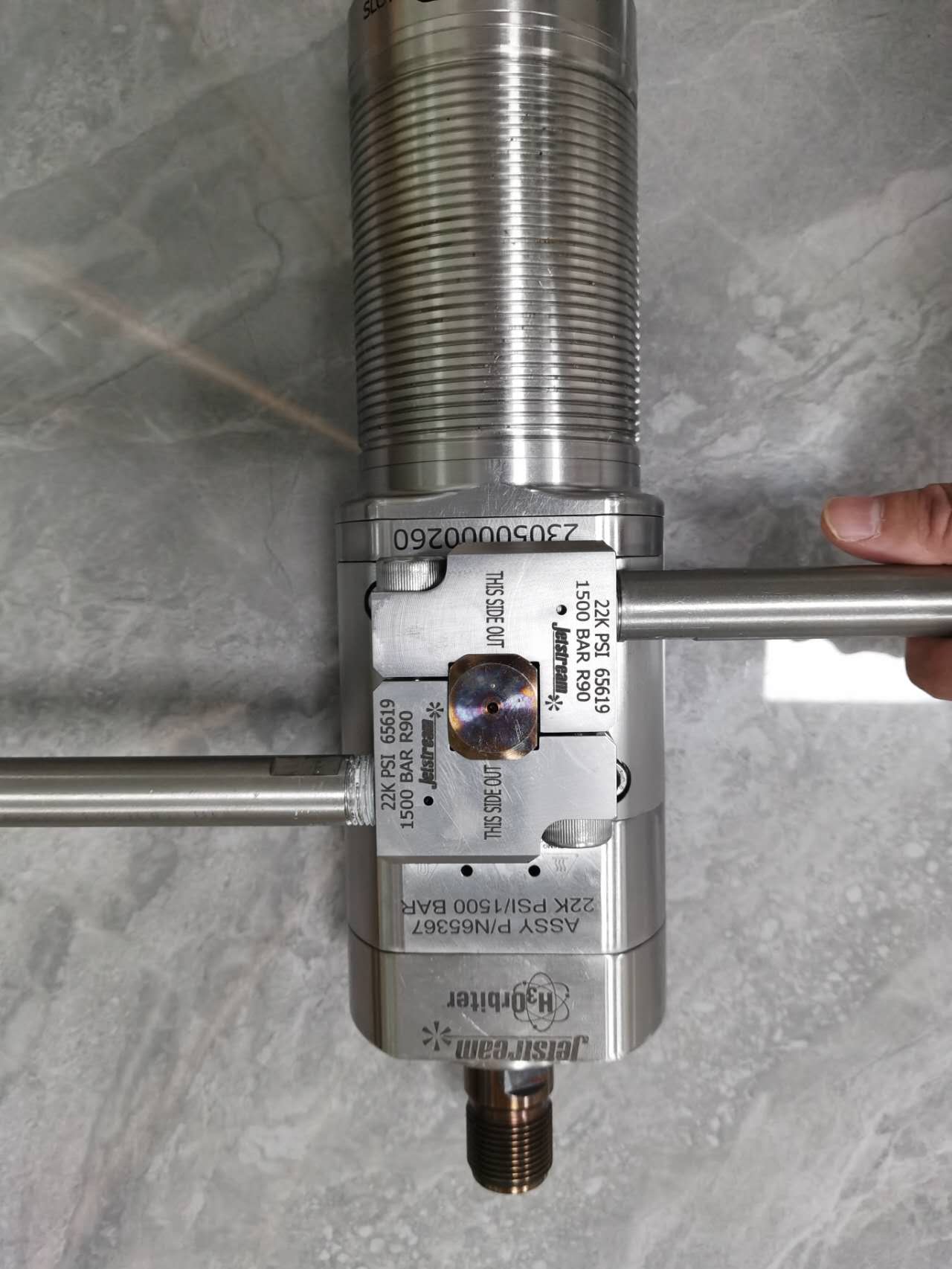

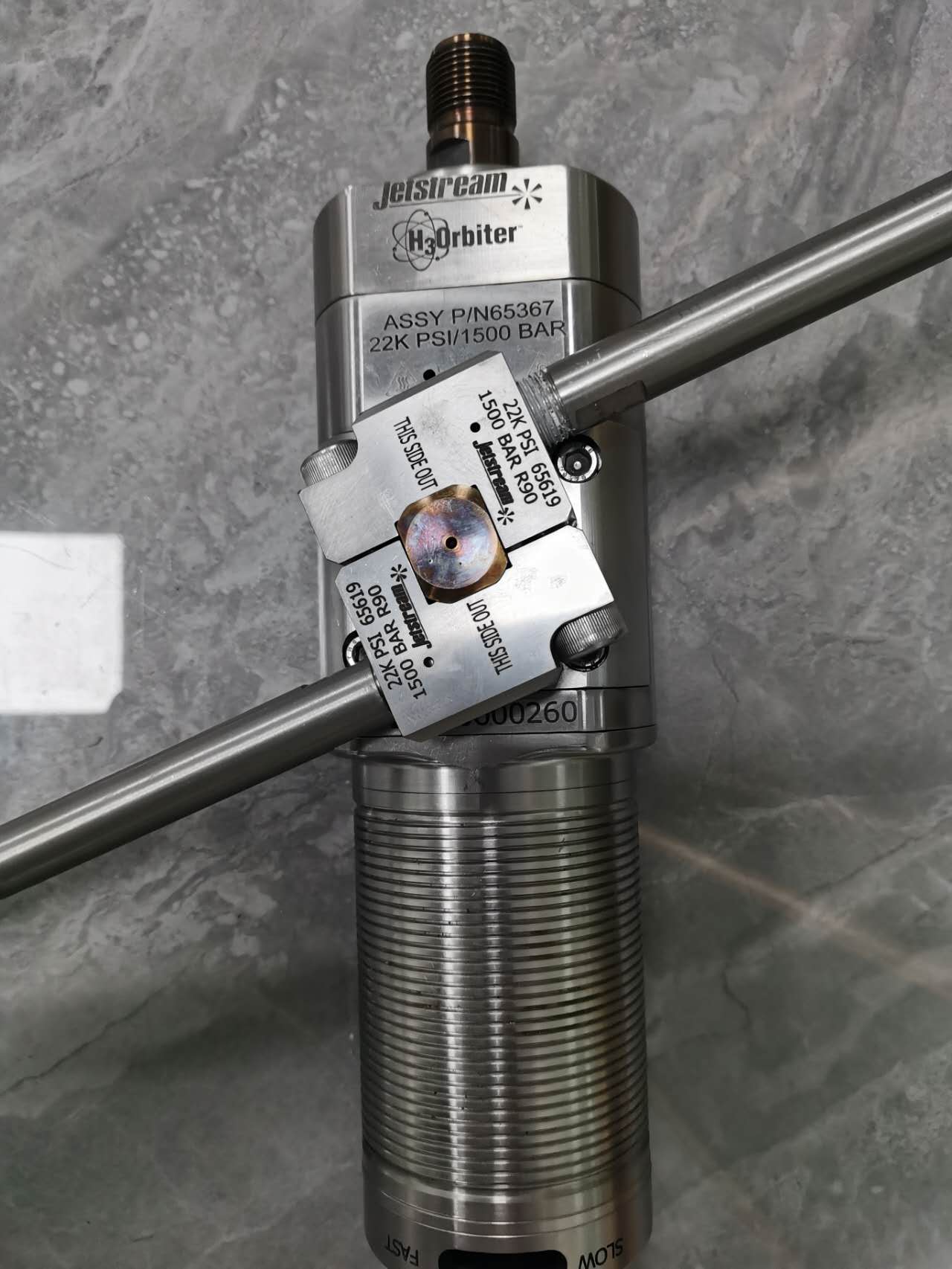

1500Bar High Pressure 3D Water H3 Orbiter Blasting Tank Vessels cleaning machine tools
1.Product Introduction of 1500Bar High Pressure 3D Water H3 Orbiter Blasting Tank Vessels cleaning machine tools
The 1500Bar High Pressure 3D Water H3 Orbiter Blasting Tank Vessels cleaning machine tools is designed to effectively and efficiently clean tanks and vessels. The rotation of the nozzles and body allow the tool to perform a complete 360 degree clean at pressures up to 22,000 psi (1500 bar).
Flow rates required are controlled through four different manifold options that provide 10 to 80 gpm (37 to 302 lpm): High Flow, Medium Flow, Low Flow, and Extra Low Flow.
A maintenance-free magnetic brake is used to control rotation speed.
2.Product Parameter (Specification) of 1500Bar High Pressure 3D Water H3 Orbiter Blasting Tank Vessels cleaning machine tools
- Product Feature And Application of 1500Bar High Pressure 3D Water H-3 Orbiter Blasting Tank Vessels cleaning machine tools
This 1500Bar High Pressure 3D Water H–3 Orbiter Blasting Tank Vessels cleaning machine tools is designed for powerful tank cleaning process tools, and it has powerful features as follows:
1) Made from stainless steel
2) Enhanced components for longer life
3)Rotational speed controlled by a maintenance-free magnetic brake
4)Four manifolds offered for application precision: High (50 to 80 gpm), Medium (28 to 55 gpm), Low (16 to 30 gpm), and Extra Low Flow (10 to 18 gpm)
