Brief Talk on 20Kpsi-40Kpsi UHP Hydro-Jet Triplex Plunger pressurized cleaning equipment parts Pump pressurized cleaner Concrete Cements Cleaning
September 17, 20251500Bar high pressurized Reciprocating rotating cleaning mechanism FAT
September 19, 2025Customer have the surface cleaning of Perforated Stainless Steel-Perforated Drum requirements and frequently need the water blasting cleaning request, pressurized cleaner Jobs need the UHP water blasting pump and pressurized washer pump rotary cleaning nozzles mechanism.
Object status: Object dirt is sticky and not too hard.
Flow Rate required：1800L/hours,
Working Pressure：500Bar,
Max Pressure Rate：800-900Bar
Spray nozzle requirements: Divergent clean flowing water, and rotary nozzle spraying cleaning.
Cleaning effect as follows:

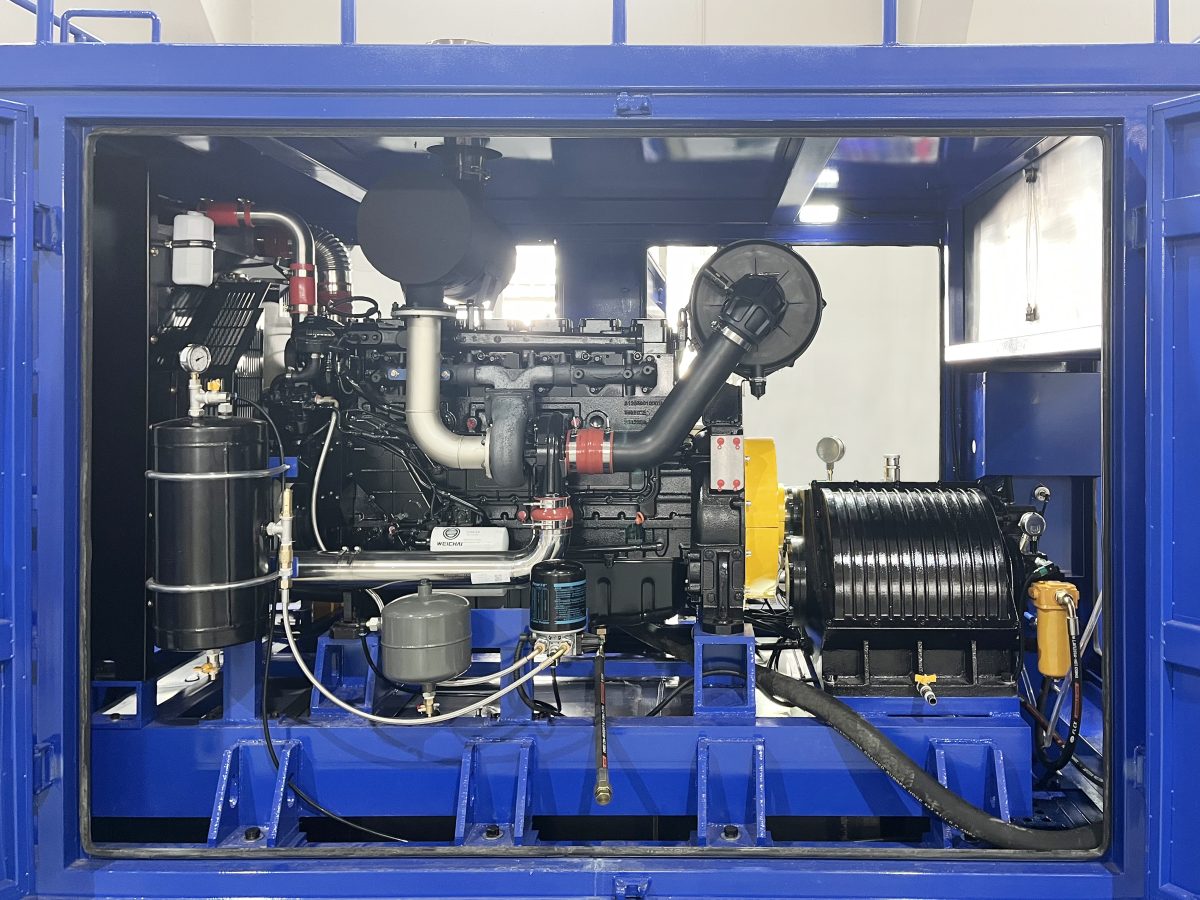

Our team have recommended customers our PW90 pressurized pump-This water pressurized pump Pressure Rate is : 70 MPa Flow: 30 L/min
Motor-Four-pole motor power: 45kw,Starter cabinet (auto-coupling voltage reduction)-Power: 55kw(details as power specification)
And this water pressurized pump at medium pressure rate level widely at Application:
UHP Water Blasting Construction Industry
Hydro Jet blaster Iron, Steel And Metal Industry
Cements and Concrete Industry
high pressure barracuda Surface cleaning
Industrial Cleaning Spray Bars
hydro blasting machine for petroleum refining industry
Hydro Jet Surface Cleaning,Tank&Vessel Cleaning,
Heat Exchange Cleaning,
Automotive Painting cleaning Mining industry cleaning Steel manufacture cleaning etc.

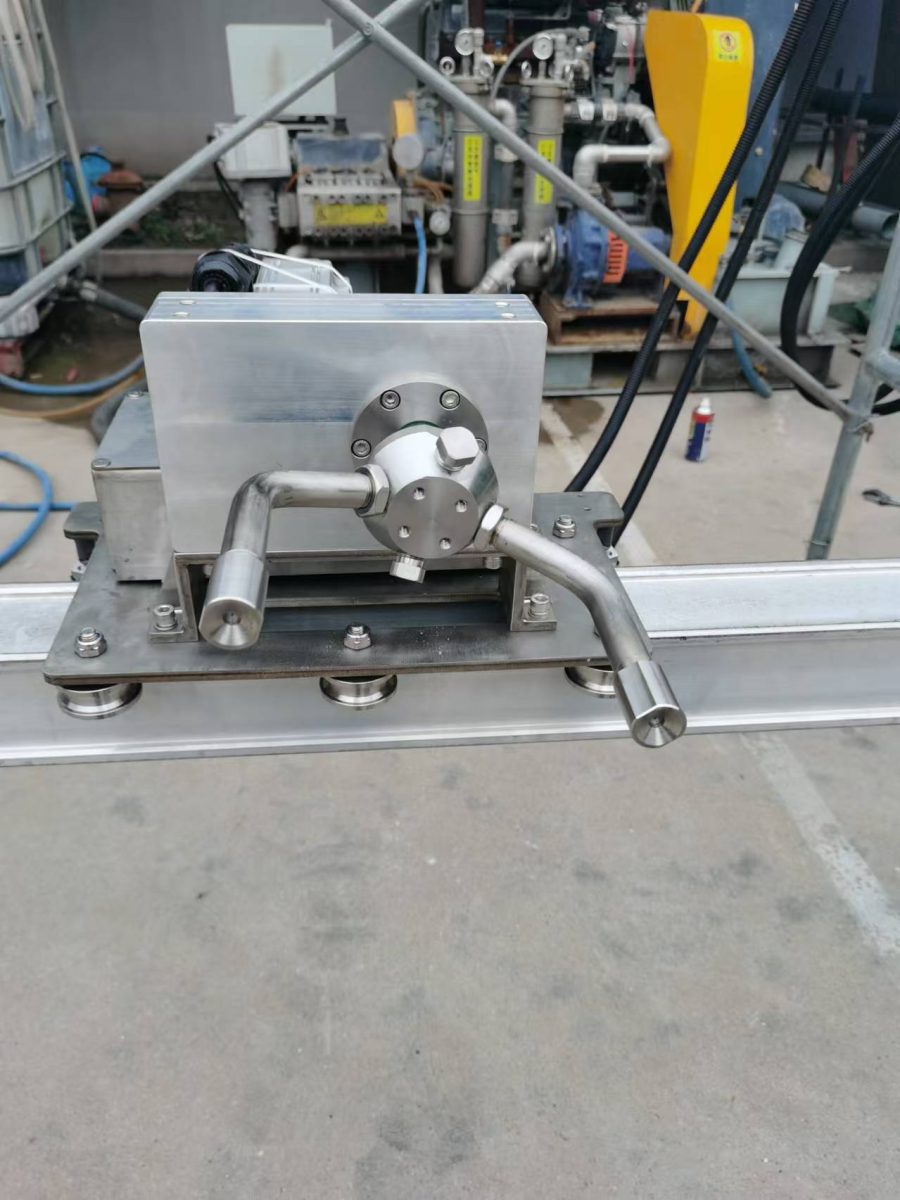

And our cleaning equipment parts the rotary nozzles mechanism make the Rotary cleaning, maximum pressure 1500bar. It is driven by a 48V motor and can be connected to an external 110V power supply, and The limits at both ends are adjustable and automatically reciprocate for cleaning, and the Rotary spray device have the hydraulic and electronic drive optional, it can fix for different working condition and cleaning requirements, and it has the two nozzles four nozzles and six nozzles depend on cleaning requirements.
And you can check the rotary nozzles with hydraulic drive models working:

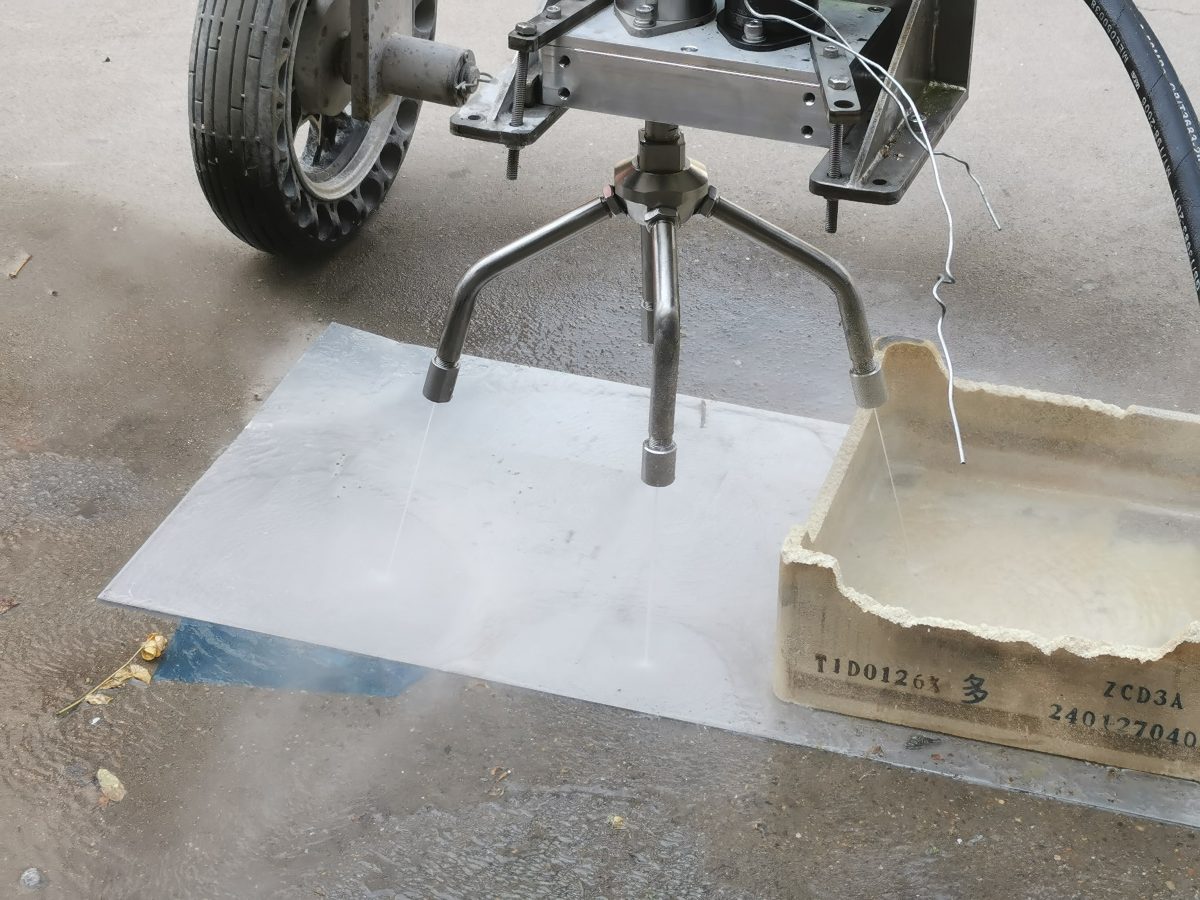

And we have the electronic drive mode cleaning

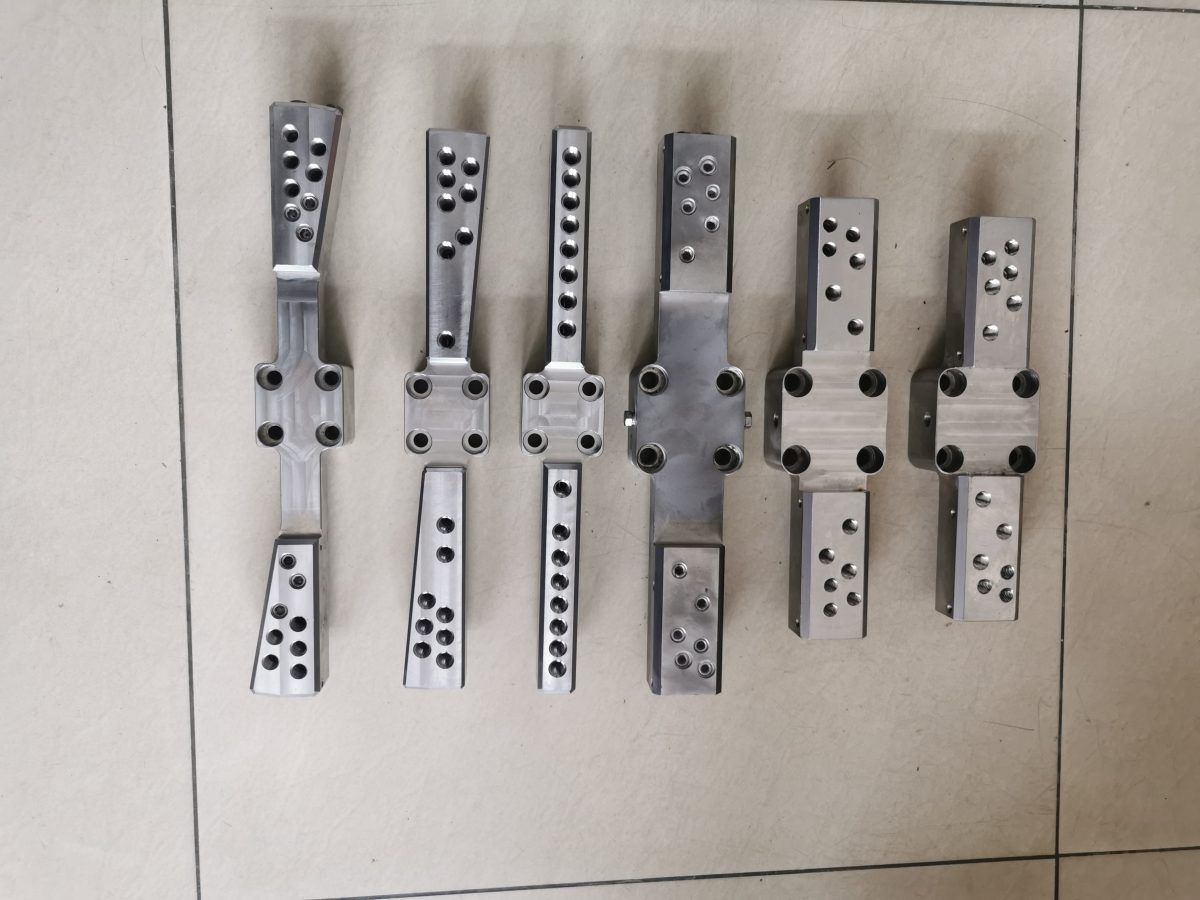

The UHP water blasting cleaning mechanism is designed to be Modular combination, hydraulic motor can be replaced with motor, and the spray bar can also be replaced with a spray bar with two nozzles, four nozzles and 4 Blade cleaning tools like these:
We are projecting and design the UHP water Blasting cleaning and supply you the high quality Water Blasting machine parts to you.
