UHP high-pressure water jet Construction industry Application wall roughening Surface Preparation Hydro-Jet Head

UHP high-pressure water jet Сonstruction industry Приложение wall roughening Surface Preparation Hydro-Jet Head

The high-pressure water jet wall roughening machine is a specialized equipment that uses ultra-high pressure water jets to create a rough surface on smooth walls.

The following are its key parameters and application details:  Work pressure and traffic flow

The UHP Water-Jetting working pressure and flow rate of the equipment are the core parameters, and they vary significantly among different models.

The exact values depend on the settings made by the manufacturer.

· Working pressure: Usually ranging from 700 bar to 2500 bar. Common models have pressures of 700 bar, 1000 bar, 1500 bar and 2000 bar (i.e. 200 MPa).

· Working flow rate: Usually ranging from 10 L/min to 23 L/min. Common flow rates are 11 L/min and 20 L/min.

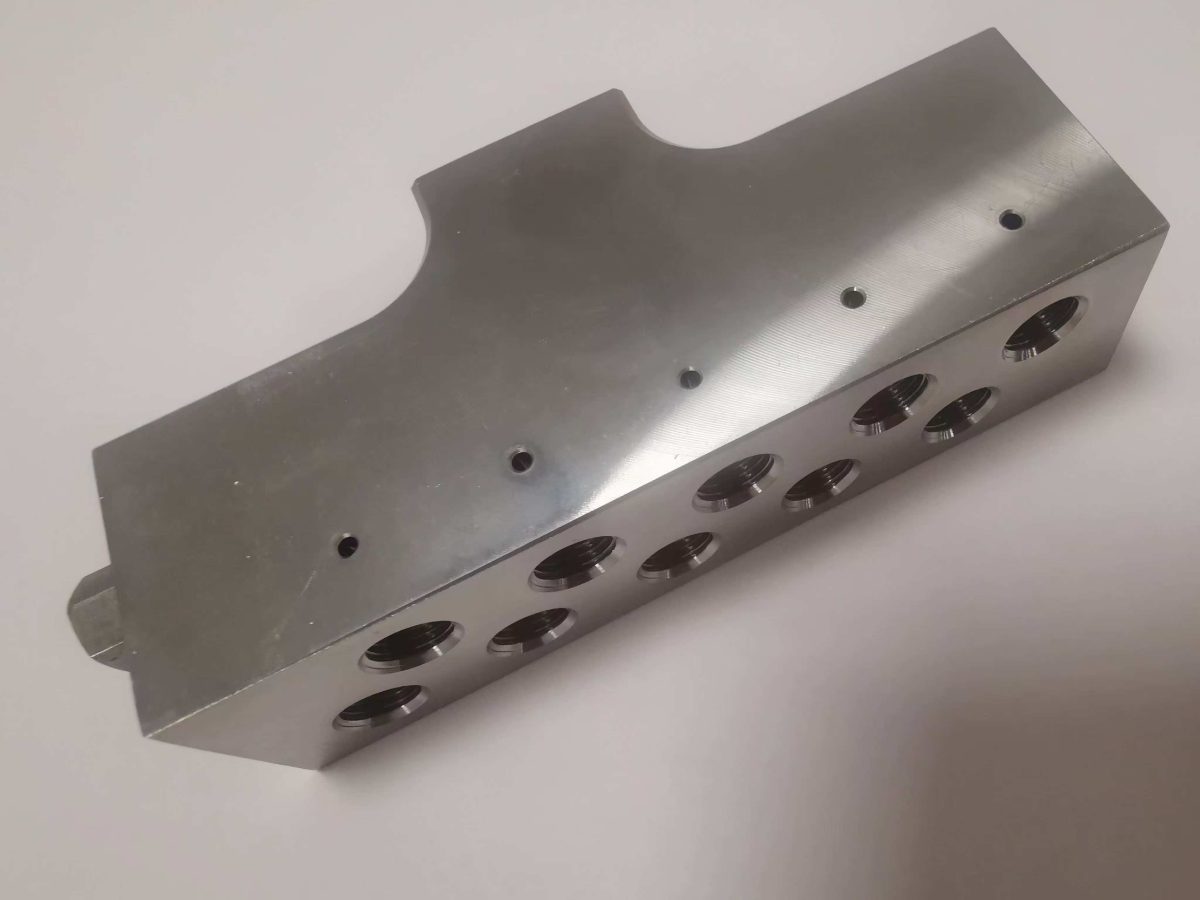

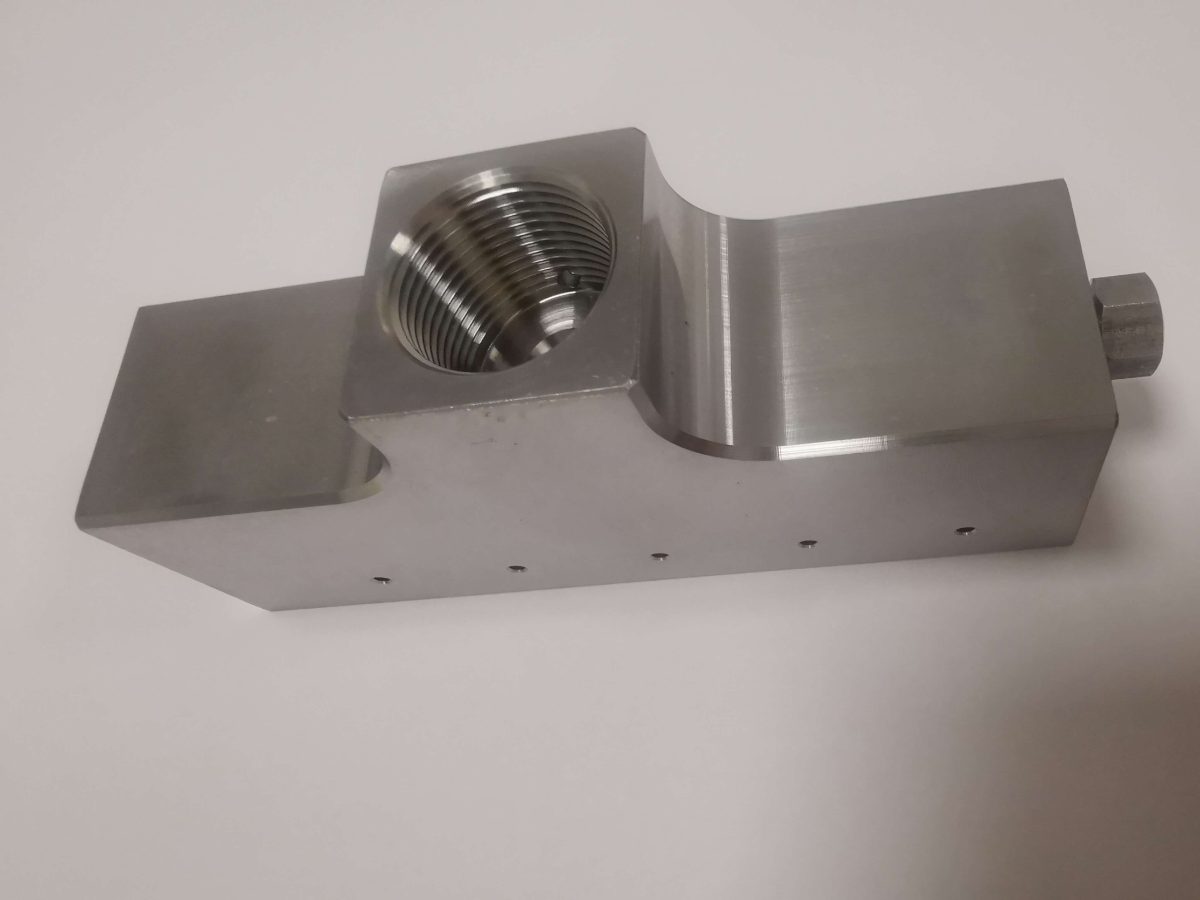

UHP high-pressure water jet wall roughening Surface Preparation Hydro-Jet Head

Application Scope

Этот UHP Water-blaster water jet wall roughening Surface Preparation Hydro-Jet Head equipped is mainly used for wall treatment in the construction industry, and specifically includes:

· Concrete shear walls and the surfaces of beams and columns are roughened.

· The surface of bridge decks and cement pavements undergo roughening and grooving treatment.

· Interface treatment before the combination of new and old concrete to enhance adhesion.

· Replace the traditional manual roughening, plastering, and net hanging processes.

Hydro-Jetting UHP high-pressure water jet Сonstruction industry Wall Roughening Core Function

By using Ultra-вода под высоким давлением to break through the surface mortar of the cement, a rough surface is formed, achieving the following effects:

· Enhance bonding strength: Significantly increase the bonding strength of materials such as tile adhesive and cement paste with the wall, effectively preventing tiles from cracking and falling off.

· Improve efficiency: One machine can roughen 400-800 square meters in 8 hours, with an efficiency 3-7 times that of manual work.

· Green and environmentally friendly: Pure physical operation, without dust or debris, only a small amount of water and mortar, friendly to the environment.

· Reduce costs: Eliminates processes such as plastering and leveling, and hanging nets, saving materials and labor, resulting in a lower overall cost.

Shenzhen Panwin Machinery&Equipment Co.Ltd — компания, занимающаяся производством и продажей оборудования и комплектующих для очистки водой сверхвысокого давления.
